SENTRONIK STAINLESS STEEL AND ALLOY STEEL BEAM FEET CBBF

Details

SKU SE BEAM FEET CBBF

Weight 1.00 lbs

Market price: $80.00

Our price: $47.00

Options

Product	Description	Price
SE CBBF 1/2-20 x 1-7/8-SS	Stainless Steel	47.00
SE CBBF 1/2-20 x 2-SS	Stainless Steel	47.00
SE CBBF 1/2-20 x 2-1/2-SS	Stainless Steel	50.00
SE CBBF 1/2-20 x 3-SS	Stainless Steel	52.00
SE CBBF 3/4-16 x 3-SS	Stainless Steel	81.00
SE CBBF 1-14 x 3-SS	Stainless Steel	94.00
SE CBBF 1-12 x 3-SS	Stainless Steel	94.00
SE CBBF 1/2-20 x 1-7/8-AS	Alloy Steel	31.00
SE CBBF 1/2-20 x 2-AS	Alloy Steel	31.00
SE CBBF 1/2-20 x 2-1/2-AS	Alloy Steel	38.00
SE CBBF 1/2-20 x 3-AS	Alloy Steel	48.00
SE CBBF 3/4-16 x 3-AS	Alloy Steel	55.00
SE CBBF 1-14 x 3-AS	Alloy Steel	63.00
SE CBBF 1-12 x 3-AS	Alloy Steel	63.00
SE CBBF Rubber cap for 1/2-20 x 1-7/8'' & 2'' dia	Rubber Cap	6.60
SE CBBF Rubber cap for 1/2-20 x 2-1/2'' & 3'' dia	Rubber Cap	6.60
SE CBBF Rubber cap for 3/4-16 x 3'' dia	Rubber Cap	7.50

Quantity

Ask a question about this product

Description
Images
Send to friend
Recommended
Reviews

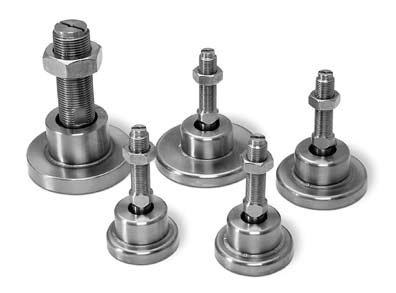

These feet screw into the threaded load hole in single ended beam load cells.
Captive ball bearing foot with 10 deg pivoting and 360 deg rotation.
Rubber Cap - Molded rubber caps for harsh or wet environments.

• Provides outstanding accuracy, repeatability, and performance
• Active ball suspension provides optimum load cell performance
• Hardened stainless steel material, welded, with polished finish
• Includes two stainless steel jam nuts, one for wrench access
• Top of stud is machined undersized 10% for easy alignment into load cell plus slotted for top-access applications

Stainless Steel
CBBF-1/2-20 x 1-7/8-SS	CBBF-1/2-20 x 2-SS	CBBF-1/2-20 x 2-1/2-SS	CBBF-1/2-20 x 3-SS
Static Load Capacity: 2,157 lb Length: 1.562 Bore: 0.250 Shank: 1.000 Dia: 0.750 Width: 0.375	Static Load Capacity: 4,916 lb Length: 1.938 Bore: 0.375 Shank: 1.250 Dia: 1.000 Width: 0.500	Static Load Capacity: 8,075 lb Length: 2.438 Bore: 0.500 Shank: 1.500 Dia: 1.312 Width: 0.625	Static Load Capacity: 9,509 lb Length: 2.625 Bore: 0.625 Shank: 1.625 Dia: 1.500 Width: 0.750
CBBF-3/4-16 x 3-SS	CBBF-1-14 x 3-SS	CBBF-1-12 x 3-SS
Static Load Capacity: 13,831 lb Length: 2.875 Bore: 0.750 Shank: 1.750 Dia: 1.750 Width: 0.875	Static Load Capacity: 43,541 lb Length: 4.125 Bore: 1.000 Shank: 2.125 Dia: 2.750 Width: 1.375	Static Load Capacity: 43,541 lb Length: 4.125 Bore: 1.000 Shank: 2.125 Dia: 2.750 Width: 1.375

Alloy Steel
CBBF-1/2-20 x 1-7/8-AS	CBBF-1/2-20 x 2-AS	CBBF-1/2-20 x 2-1/2-AS	CBBF-1/2-20 x 3-AS
Minimum Height: 1-3/4" Maximum Height: 3" Pad: 1-7/8" dia	Minimum Height: 1-3/4" Maximum Height: 3" Pad: 2" dia	Minimum Height: 1-3/4" Maximum Height: 3" Pad: 2-1/2" dia	Minimum Height: 1-3/4" Maximum Height: 3" Pad: 3" dia
CBBF-3/4-16 x 3-SS	CBBF-1-14 x 3-SS	CBBF-1-12 x 3-SS
Minimum Height: 2-1/2" Maximum Height: 4-1/4" Pad: 3" dia	Minimum Height: 2-1/2" Maximum Height: 4-1/4" Pad: 3" dia	Minimum Height: 2-1/2" Maximum Height: 4-1/4" Pad: 3" dia

Rubber Cap
for 1/2-20 x 1-7/8" & 2" dia	for 1/2-20 x 2-1/2" & 3" dia
