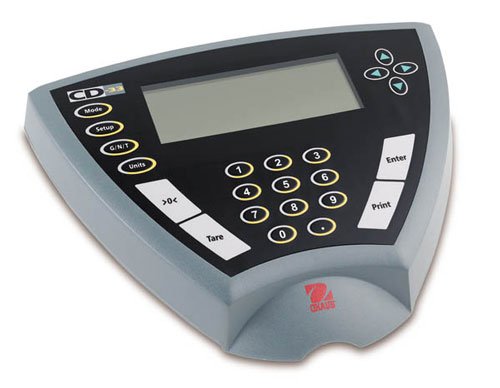

The Ohaus indicators are the shape of things to come! Models CD-31 and CD-33 offer functions like basic weighing, parts counting, checkweighing, animal weighing and more. Smart software and hardware are enclosed in sharp contemporary housings. Designed to support up to four 350 ohm analog load cells in industrial and laboratory applications.
Specifications: Graduations (lb/kg): 0.0005 - 100 NTEP Resolution: 1:10,000 LFT NTEP Number: 99-071 Display resolution: 1:50,000 max. (Non LFT) Weighing units: lb, kg, g Functions: Weighing, Parts Counting, Animal Weighing, Percent and Checkweighing Over range capacity: Maximum capacity +5 divisions Stabilization time (seconds): 1 - 4 seconds (user selectable) Auto Zero Tracking: Off, 0.5, 1, or 3 divisions Zeroing range: 2%, 18%, or 100% of capacity Span Calibration: 10% to 100% of capacity Load cell excitation (V dc): 5 VDC Load cell input sensitivity: 2 or 3 mv/V Load cell drive: (4) 350 ohm load cells Display type: LCD (1 in. / 2.54 cm digit height), 2 line, weight and prompt message Power requirements: AC Adapter Keyboard: 8 Function, 4 Cursor, and 11 Numeric Membrane Keys Interface: Bi-directional RS-232 with GMP data output Operating temperature range: 14° to 104°F / -10° to 40°C Dimensions WxHxD (in/cm): 10 x 3.12 x 7.75 25.4 x 7.92 x 19.68 Shipping dimensions (WxDxH) (in/cm): 13.3 x 9.5 x 4.75 / 34 x 24 x 12 Scale Weight (lb/kg): 1.4 / 0.65 Shipping Wt. (lb/kg): 4 / 1.8
|
|
|
|
