AMCELLS CSL CRANE SCALE LOAD CELL (12Klb to 100Klb)

AMCELLS CSL CRANE SCALE LOAD CELL (12Klb to 100Klb)

AMCELLS CSL CRANE SCALE LOAD CELL (12Klb to 100Klb)
Details
SKU AMC CSL
Weight 10.00 lbs

Market price: $897.00
Our price: $807.00
Options
Product Description Pan size Price Quantity
AMC CLS 12 12K lb   807.00
AMC CLS 30 30K lb   1077.00
AMC CLS 40 40K lb   1077.00
AMC CLS 50SE 50Kse lb   1077.00
AMC CLS 50 50K lb   1617.00
AMC CLS 75 75K lb   1887.00
AMC CLS 100 100K lb   1887.00
Quantity
• Crane Scale Load Cell
• High Grade Alloy Steel
• Design for Shackles Usage
• Meets OIML and HB44 III Standards

Capacities 12K, 30K, 40K, 50Kse, 50K, 75K, 100K, 150K, 200K, 250K, 300K and 400K lb
Rated Output (R.O.) 2.0 MV/V ± 1%
Zero Balance ± 2% of R.O.
Non-Linearity 0.03% of R.O.
Hysteresis 0.02% of R.O.
Non-Repeatability 0.05% of R.O.
Creep (1 hour) 0.05% of Load
Insulation > 5,000M Ohm
Input Impedance 380 ± 30 Ohm
Output Impedance 350 ± 4 Ohm
Safe Overload 150% F.S.
Ultimate Overload 300% F.S.
Compensated Temperature Range -10Ú to 40Ú C
Operating Temperature Range -40Ú to 80Ú C
Temperature Effect on Output 40 ppm/ÚC of Load
Temperature Effect on Zero 40 ppm/ÚC of R.O.
Recommended Excitation 10V DC/AC
Maximum Excitation 20V DC/AC

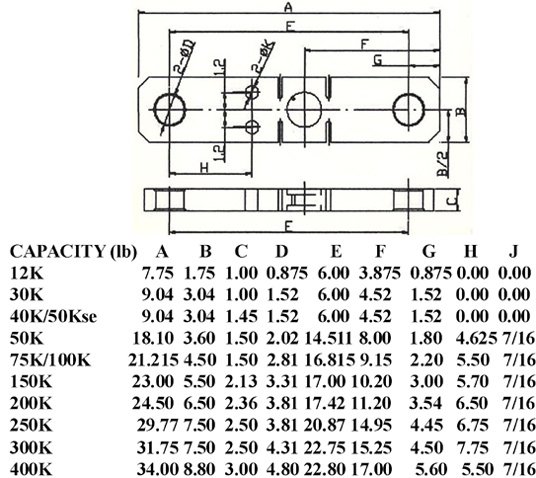

CAPACITY (lb) A B C D E F G H J
12K 7.75 1.75 1.00 0.875 6.00 3.875 0.875 0.00 0.00
30K 9.04 3.04 1.00 1.52 6.00 4.52 1.52 0.00 0.00
40K/50Kse 9.04 3.04 1.45 1.52 6.00 4.52 1.52 0.00 0.00
50K 18.10 3.60 1.50 2.02 14.511 8.00 1.80 4.625 7/ 16
75K/100K 21.215 4.50 1.50 2.81 16.815 9.15 2.20 5.50 7/ 16
150K 23.00 5.50 2.13 3.31 17.00 10.20 3.00 5.70 7/ 16
200K 24.50 6.50 2.36 3.81 17.42 11.20 3.54 6.50 7/ 16
250K 29.77 7.50 2.50 3.81 20.87 14.95 4.45 6.75 7/ 16
300K 31.75 7.50 2.50 4.31 22.75 15.25 4.50 7.75 7/ 16
400K 34.00 8.80 3.00 4.80 22.80 17.00 5.60 5.50 7/ 16
COLOR CODE :
Red + Excitation; Green + Signal;
Black - Excitation; White - Signal
CABLE LENGTH : 15 feet
10%
CSL_Celda_Carga_Grua_Amcells
csl especifications
: *
: *
: *
