AMCELL SSBL LOAD CELL SINGLE-ENDED SHEAR BEAM ( 1K to 20K)

AMCELL SSBL LOAD CELL SINGLE-ENDED SHEAR BEAM ( 1K to 20K)

AMCELL SSBL LOAD CELL SINGLE-ENDED SHEAR BEAM ( 1K to 20K)
Details
SKU AMC SSBL
Weight 10.00 lbs

Market price: $264.00
Our price: $238.00
Options
Product Description Pan size Price Quantity
AMC SSBL 1K     238.00
AMC SSBL 2.5K     238.00
AMC SSBL 4K     238.00
AMC SSBL 5Kse     238.00
AMC SSBL 5K     283.00
AMC SSBL 10K     283.00
AMC SSBL 15K     338.00
AMC SSBL 20K     338.00
Quantity
• Single-Ended Shear Beam (Link)
• High Grade Tool Steel
• Meets OIML and HB44 Class III Standards

Capacities 1K, 2.5K, 4K, 5Kse, 5K, 10K lb
Rated Output (R.O.) 3.0 MV/V ± 1%
Zero Balance ± 2% of R.O.
Non-Linearity 0.02% of R.O.
Hysteresis 0.02% of R.O.
Non-Repeatability 0.02% of R.O.
Creep (1 hour) 0.02% of Load
Insulation > 5,000M Ohm
Input Impedance 385 ± 30 Ohm
Output Impedance 350 ± 4 Ohm
Safe Overload 150% F.S.
Ultimate Overload 300% F.S.
Compensated Temperature Range -10Ú to 40Ú C
Operating Temperature Range -40Ú to 80Ú C
Temperature Effect on Output 20 ppm/ÚC of Load
Temperature Effect on Zero 20 ppm/ÚC of R.O.
Recommended Excitation 10V DC/AC
Maximum Excitation 20V DC/AC
CAPACITY (lb) A B C D E F G H I J
1K — 5Kse 5.12 1.25 0.62 1.00 3.00 0.53 0.44 0.62 0.62 0.92
5K — 10K 6.75 1.50 0.75 1.50 3.75 0.78 0.56 0.86 0.90 1.20
COLOR CODE :
Red + Excitation; Green + Signal;
Black - Excitation; White - Signal
CABLE LENGTH : 20 feet
10%

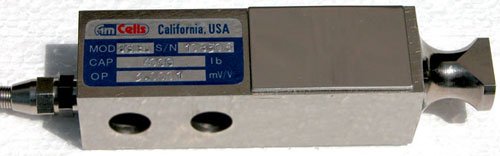

SSBL_Celda_de_Carga_Amcells
: *
: *
: *
